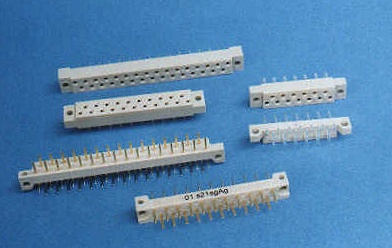

31 Contact Male and Female Connectors on 2.5mm Spacing

DIN 41617 connectors are available fully loaded with all 31 contacts, or selectively loaded with 13 or 21 contacts. Pins are spaced on 2.5 mm grid and the connectors are offered in class 1 (500 mating cycles) or class 2 (400 Mating Cycles). Female connectors are available with solder pins for direct board mounting or with solder eylets for discrete wiring. Male connector pins are right angle solder or straight solder. Operating current at 20o C is 4 A/pin. A DIN 41617 to DIN 41612 Conversion socket can be used to transfer formats.

  For drawings and more information click the PDF bar on label

Call 508 620 1678  or e mail 2E@2esyscom.com

 DIN 41617















-2E-

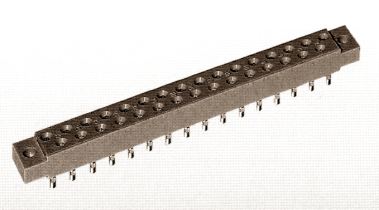

FEMALE - Solder Eylets  PDF  Page 18

Class

13 Contacts

21 Contacts

31 Contacts

Class 1 (500 mating cycles)

01 f13lAg

01 f121Ag

01 f31lAg

Class 2 (400 mating cycles)

01 f13lSn/Au

01 f21lSn/Au

01 f31lSn/Au

-2E-

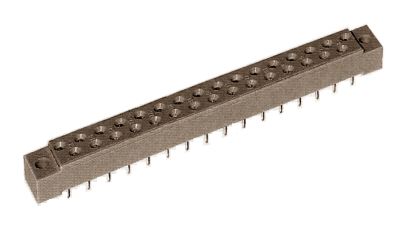

FEMALE -Straight Dip Solder    PDF  Page 19

Class

13 Contacts

21 Contacts

31 Contacts

Solder pin without mounting flange

Class 1 (500 mating cycles)

01 f13tAgoA

01 f21tAgoA

01 f31tAgoA

Class 2 (400 mating cycles)

01 f13t2Sn/AuoA

01 f21t2Sn/AuoA

01 f31t2Sn/AuoA

Solder pin with mounting flange

Class 1 (500 mating cycles)

01 f13tAgmA

01 f21tAgmA

01 f31tAgmA

Class 2 (400 mating cycles)

01 f13t2Sn/AumA

01 f21t2Sn/AumA

01 f31t2Sn/AumA

-2E-

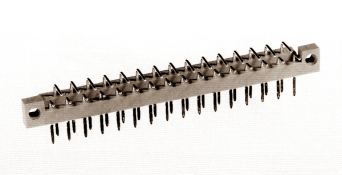

MALE -Right Angle Dip Solder    PDF  Page 20

Class

13 Contacts

21 Contacts

31 Contacts

Class 1 (500 mating cycles)

01 s13wAg

01 s21wAg

01 s31wAg

Class 2 (400 mating cycles)

01 s13w2Sn/Au

01 s21w2Sn/Au

01 s31w2Sn/Au

-2E-

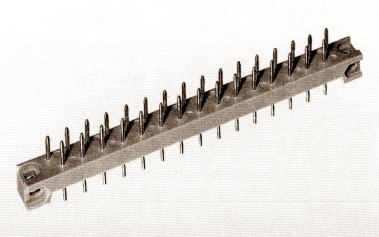

MALE -Straight Dip Solder    PDF  Page 21

Class

13 Contacts

21 Contacts

31 Contacts

Class 1 500 (mating cycles)

01 s13sgAg

01 s21sgAg

01 s31sgAg

Class 2 (400 mating cycles)

01 s13sg2Sn/Au

01 s13sg2Sn/Au

01 s13sg2Sn/Au

-2E-
